Connection Systems in Pre-Engineered Steel Buildings

In the modern construction industry, pre-engineered steel buildings have become a premier solution due to their rapid construction speed and cost-effectiveness. However, few people realize that the secret to the strength and durability of these structures lies in their sophisticated connection systems. This article delves into the most common connection methods, analyzing their roles and importance for the overall quality of pre-engineered steel buildings.

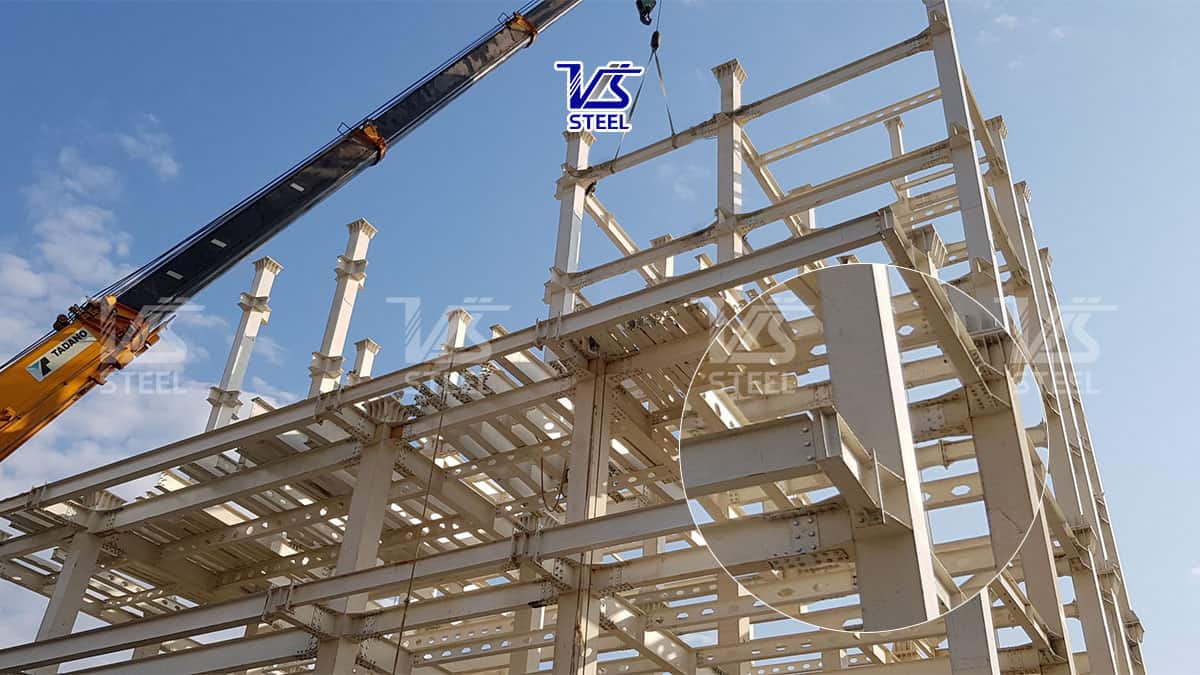

Overview of Connection Methods in Steel Structures

A steel structure's connection system is more than just joining components. It must efficiently transfer forces, allowing the entire frame to function as a single unit. The choice of connection method directly impacts the building's load capacity, stability, and lifespan.

While there are many ways to connect steel members, the most common methods in pre-engineered steel construction are bolting, welding, and sometimes a combination of both.

Primary Connection Methods in Pre-Engineered Steel Buildings

Here are the three main connection methods widely used:

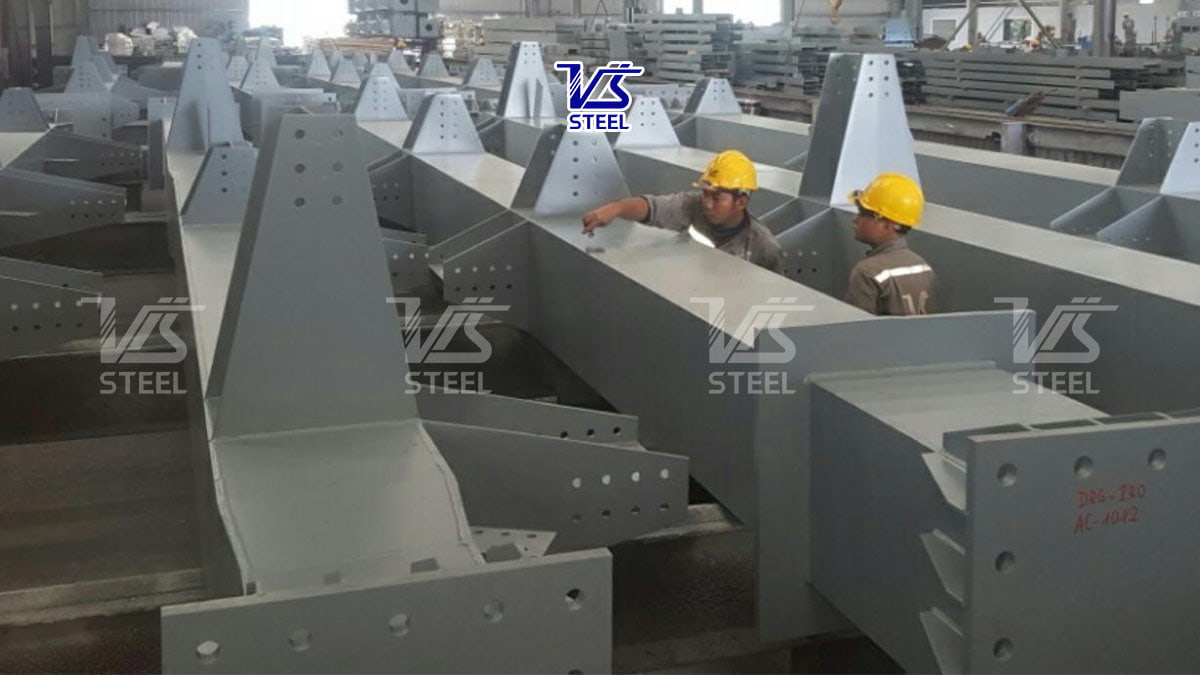

Bolted Connections

This is the most popular method in pre-engineered steel construction due to its flexibility and ease of assembly. Components are fabricated at the factory (with precision-drilled holes) and then assembled on-site using bolts.

- Advantages: Fast construction, no need for highly skilled on-site welders, and easy to disassemble or modify.

- Disadvantages: Requires strict control of bolt torque; improper tightening can compromise load capacity.

Bolted Connections

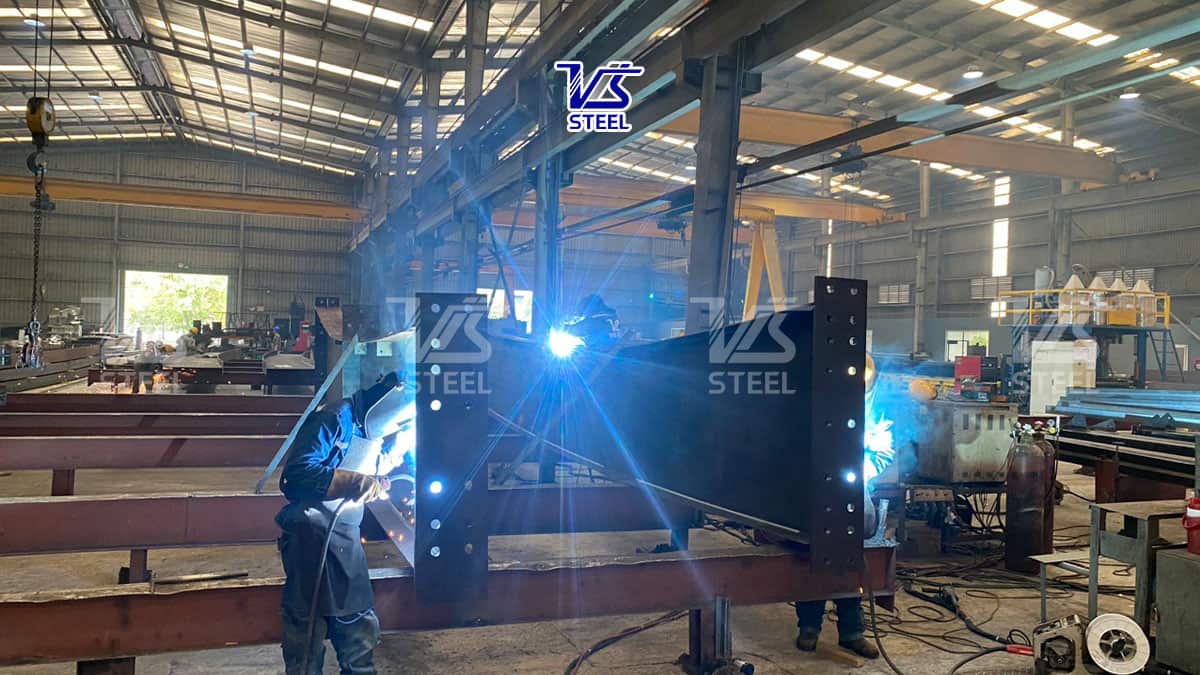

Welded Connections

Welding is a method that creates a permanent, strong joint by melting and fusing metal materials. Welds can be performed at the factory or directly on the construction site.

- Advantages: Creates airtight, robust, and highly durable joints with excellent load-bearing capacity.

- Disadvantages: Requires highly skilled welders, prone to material deformation if not properly controlled, and difficult to repair or disassemble.

Welded Connections

Hybrid Connections

To leverage the best of both methods, a hybrid approach is often used. For instance, some critical load-bearing connections are welded at the factory for maximum strength, while other on-site connections are bolted to speed up assembly. This method offers high efficiency from both a technical and economic perspective.

The Importance of Connections for Project Quality

Connection systems are the crucial factor that determines the success or failure of a pre-engineered steel building:

- Ensuring Structural Safety: A weak connection can cause a building to collapse when faced with heavy loads, especially from high winds or earthquakes. Conversely, a correctly designed and executed connection system allows the structure to withstand such forces.

- Increasing Durability and Lifespan: Proper connections distribute loads evenly, preventing stress concentration at single points and making the building more durable over time.

- Optimizing Cost and Time: Choosing the right connection method for each location helps save on materials, reduce on-site construction time, and optimize labor costs.

In conclusion, connection systems are an indispensable and critically important part of pre-engineered steel construction. They are not just technical components but the very foundation of safety and quality. Understanding these methods and their roles will help investors and contractors make sound decisions, building structures that are not only economically efficient but also built to last.
